| Model |
GA11048JMH |
|
Nominal Voltage |
220/230/240VAC |
| Voltage Range |
90-280VAC±3V（Inverter Mode) 170-280VAC±3V（UPS Mode） |
| Frequency |
50Hz/60Hz(Auto Adaptive) |
| Output |
Rated Power |
11 KW |
| Output Voltage |
220/230/240VAC±5% |
| Frequency |
50/60Hz±0.1% |
| Waveform |
Pure Sine Wave |
| Transfer Time(Adjustment) |
10ms typical, 20ms Max |
| Peak Power |
22000VA |
| Overload Capacity(Battery Mode) |
1min@102%~110% Load
10s@110%~130% Load
3s@130%~150% Load
200ms@>150% Load |
| Peak Efficient（Battery Mode） |
98% |
| Battery |
Norminal Voltage |
48VDC |
| Constant charge voltage（Adjustment） |
56.4VDC |
| Floating charge voltage（Adjustment） |
54VDC |
| Charger |
Maximun PV Input Power |
2*5500W |
| MPPT Controller Voltage |
90-500VDC |
| Maximum PV Input Voltage |
500VDC |
| Maximum PV Charging Current |
MPPT 150A |
| Maximum AC Charging Current |
60A |
| Maximum Charging Current |
150A |
| Display |
LCD Display |
AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage, Output Frequency, Battery Voltage,Load Current,etc. |
| Interface |
RS232 |
5PIN/Pitch2.0mm |
| Expansion slot communication interface |
2×5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFI, etc |

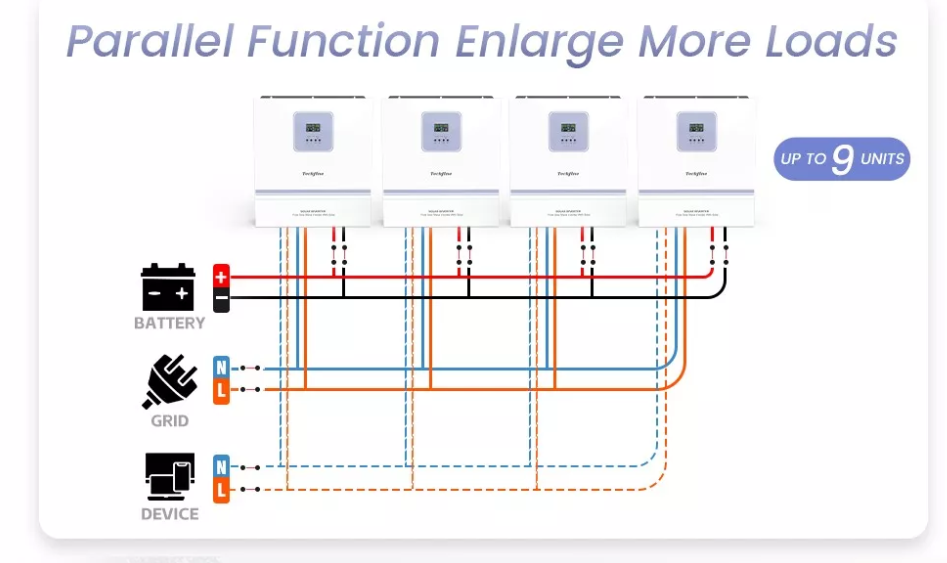

| Parallel Interface |
Optional，MAX 9PCS |
| Operating Environment |
Operating Temperature |
0~40℃ |
| Humidity |
20%~95%（Non-condensing） |
| Storage Temperature |
-15~60℃ |
| Altitude |
<1000m |
| Accoustic Noise(db) |
≤50dB |
